關節鏡作為現代醫學中不可或缺的精密診療設備，其維修與保養直接關系到手術安全與設備使用壽命。從日常維護到專業維修，每個環節都需嚴格遵循技術規范。

　　Arthroscopy, as an indispensable precision diagnostic and therapeutic equipment in modern medicine, its maintenance and upkeep are directly related to surgical safety and equipment lifespan. From daily maintenance to professional repairs, every step must strictly follow technical specifications.

　　一、日常維護：細節決定壽命

　　1、 Daily maintenance: Details determine lifespan

　　清潔消毒規范：術后需立即用酶洗劑浸泡可拆卸部件，管道內水分需用吸引器徹底吸凈，避免殘留液體腐蝕光學元件。鏡頭清潔必須使用專用試鏡紙，沿同一方向輕拭，禁止使用含酒精溶劑，以防鍍膜脫落。

　　Cleaning and disinfection standards: After surgery, removable parts should be immediately soaked in enzyme detergent, and the water inside the pipeline should be thoroughly absorbed by a suction device to avoid residual liquid corroding optical components. Special test paper must be used for lens cleaning, gently wiped in the same direction, and alcohol containing solvents are prohibited to prevent coating detachment.

　　環境管控要點：設備應存放于恒溫恒濕（溫度20-25℃，濕度40-60%）的專用柜內，鏡頭需單獨置于防震鏡盒，避免與尖銳器械混放。長期存放時應定期通電除濕，防止電路板霉變。

　　Environmental control points: The equipment should be stored in a dedicated cabinet with constant temperature and humidity (temperature 20-25 ℃, humidity 40-60%), and the lens should be placed separately in a shock resistant lens box to avoid mixing with sharp instruments. When stored for a long time, the circuit board should be regularly powered on for dehumidification to prevent mold growth.

　　使用記錄追溯：建立電子化使用檔案，記錄每次開機時長、手術類型及操作人員。某教學醫院數據顯示，規范記錄可使設備故障間隔時間延長40%。

　　Traceability of usage records: Establish electronic usage files to record the duration of each startup, surgical type, and operator. According to data from a certain teaching hospital, standardized recording can extend the interval between equipment failures by 40%.

　　二、故障排查：精準定位是關鍵

　　2、 Troubleshooting: Accurate positioning is key

　　圖像異常診斷樹：

　　Image anomaly diagnosis tree:

　　全黑屏：優先檢查冷光源與光纖連接，某品牌設備曾因光纖接頭氧化導致70%光能損耗。

　　Full black screen: Priority should be given to checking the connection between the cold light source and the fiber optic cable. A certain brand of equipment once experienced 70% light energy loss due to oxidation of the fiber optic connector.

　　馬賽克圖像：多為柱狀透鏡陣列錯位，需在50倍顯微鏡下觀察透鏡間隙是否均勻。

　　Mosaic images: often show misaligned cylindrical lens arrays, and it is necessary to observe whether the lens gaps are uniform under a 50x microscope.

　　色偏現象：可能是CCD傳感器老化，需用色度計檢測RGB三通道響應值。

　　Color cast phenomenon: It may be due to aging of the CCD sensor, and a colorimeter is needed to detect the RGB three channel response values.

　　機械故障處理：

　　Mechanical fault handling:

　　鏡桿彎曲：超過3°彎曲必須返廠校準，某維修案例顯示，強行矯正會導致光路永久偏移。

　　Mirror rod bending: If the bending exceeds 3 degrees, it must be returned to the factory for calibration. A certain maintenance case shows that forced correction can cause permanent deviation of the optical path.

　　進水修復：發現密封失效后24小時內處理，成功率可達85%。需用分子篩干燥劑進行48小時深度除濕。

　　Water ingress repair: Within 24 hours of discovering seal failure, the success rate can reach 85%. Molecular sieve desiccant is required for 48 hours of deep dehumidification.

　　三、零部件更換：原廠認證是底線

　　3、 Component replacement: Original factory certification is the bottom line

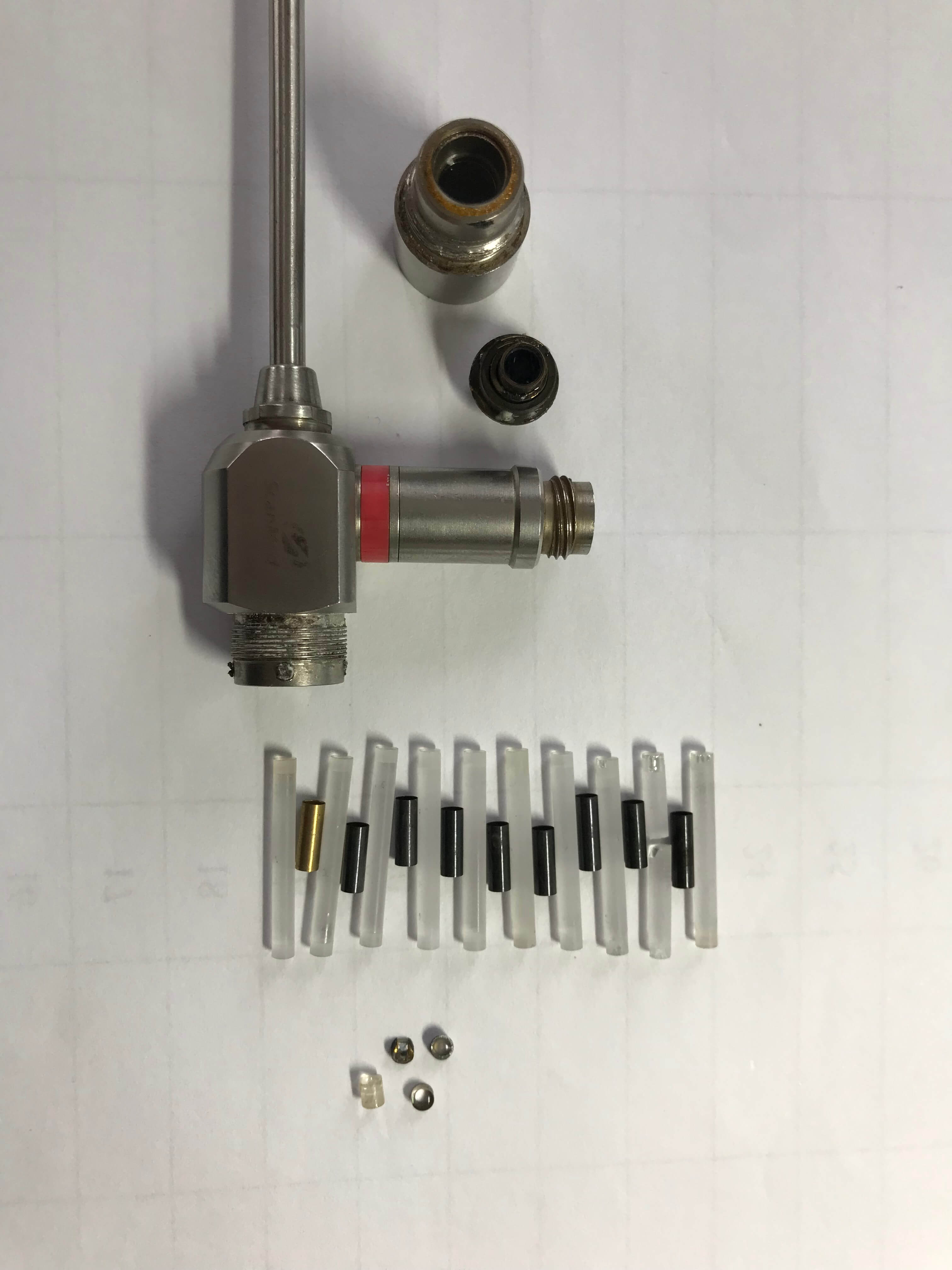

　　核心部件替換：

　　Core component replacement:

　　物鏡組更換：必須使用與設備匹配的光學玻璃，折射率偏差需控制在±0.001范圍內。

　　Objective lens replacement: Optical glass that matches the equipment must be used, and the refractive index deviation must be controlled within ± 0.001.

　　導光纖維束：?jiǎn)胃鶖嗔殉^15%即需整體更換，某維修站統計顯示，拼接修復后光衰減達30%。

　　Light guiding fiber bundle: If a single strand breaks by more than 15%, it needs to be replaced as a whole. According to statistics from a certain repair station, the light attenuation after splicing repair is reduced by 30%.

　　密封件升級：建議每2年更換全部O型圈，新型氟橡膠材質比傳統硅膠件耐腐蝕性提升3倍。

　　Sealing upgrade: It is recommended to replace all O-rings every 2 years. The new fluororubber material has three times higher corrosion resistance than traditional silicone parts.

　　四、專業維修：校準驗證不可少

　　4、 Professional maintenance: Calibration verification is essential

　　光學系統校準：

　　Optical system calibration:

　　分辨率測試：需使用USAF1951分辨率板，確保中心/邊緣視場分辨率達標。

　　Resolution test: The USAF1951 resolution board is required to ensure that the center/edge field of view resolution meets the standard.

　　色彩還原驗證：采用24色色卡比對，ΔE值需控制在2以內。

　　Color restoration verification: 24 color cards are used for comparison, and the Δ E value needs to be controlled within 2.

　　機械性能檢測：

　　Mechanical performance testing:

　　彎曲剛度測試：在鏡桿施加10N縱向力，形變量不得超過0.5mm。

　　Bending stiffness test: Apply a longitudinal force of 10N on the mirror rod, and the deformation should not exceed 0.5mm.

　　密封性驗證：需通過0.2MPa氣壓測試，泄漏率≤0.1sccm。

　　Sealing verification: It is required to pass a 0.2MPa air pressure test with a leakage rate of ≤ 0.1sccm.

　　五、預防性維護：未雨綢繆策略

　　5、 Preventive maintenance: a proactive strategy

　　易損件周期管理：

　　Cycle management of vulnerable parts:

　　密封圈：建議每50次高溫滅菌后更換。

　　Sealing ring: It is recommended to replace it every 50 high-temperature sterilization cycles.

　　光纜保護套：出現3處以上龜裂即需更換。

　　Fiber optic cable protective cover: If there are more than 3 cracks, it needs to be replaced.

　　操作培訓體系：

　　Operation training system:

　　實行三級授權制度，新晉醫師需完成20例模擬操作考核。

　　Implement a three-level authorization system, and new physicians are required to complete 20 simulated operation assessments.

　　建立標準化操作視頻庫，包含15項關鍵步驟演示。

　　Establish a standardized operation video library, including 15 key step demonstrations.
